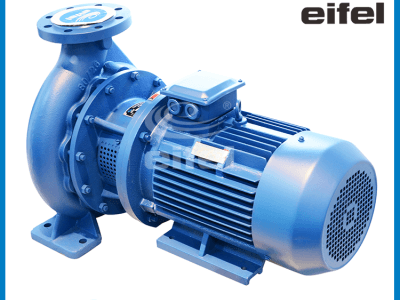

EAZ系列型泵是臥式直聯、軸向端吸、徑向排出、單級單吸離心泵，泵結構為后開式結構，拆開泵蓋和葉輪時不需拆卸吸水和排出管路。該系列產品結構簡單，機泵采用穿軸式連接，且水泵有獨立的軸承支撐，機泵同心度高，機組運行噪音小，穩定可靠、效率高；維護方便，易拆易裝，定位精確可靠；機組獨特的安裝結構，大大縮小機組的占地面積，有效節約建設投資成本。
適用于輸送清水及物理化學性質類似于水的介質，液體動力黏度系數應小于150cSt（大于20cSt時性能需要修正）且不含有任何可能對泵造成機械或化學侵害的固體顆?；蚶w維液體。
介質溫度：（-10℃）~85℃；
環境溫度：環境溫度不得超過40℃；超過40℃，電機應降低功率使用。
High Quality Single-suction Horizontal Centrifugal Pump Mechanism
| Pump type | EAZS series Close-coupled end suction centrifugal pump |
| Design Standard | European standard BS EN733/DIN24255 |
| Structure | Close-coupled,horizontal,Axial End-Suction,Single-Stage,Volute Casing |
| Discharge Size | DN32~150mm |
| Flange | DIN2501 PN16 GB/T17241.6 PN1.6 |
| Motor | IEC standard motor |
| Casing | Cast Iron standard,Ductile Iron/ASTM304/ASTM316 options on request |
| Impeller | Brass standard,Cast Iron/ASTM304/ASTM316 options on request |
| Shaft | ASTM420 standard,ASTM304/ASTM316/ASTM1045 options on request |
| Shaft Seal | Mechanical Seal(standard) |
| Flow Rate(Q) | 4~500m3/h |
| Head(H) | 8~150m |
| Speed | 1450/2900rpm(50Hz);1750/3500 rpm(60Hz) |
| Max Temperature | 85°C(standard) |
| Working Pressure | 1.0MPa standard;1.6MPa(option on request) |
| Conveying Medium | Clean water or liquids similar to clean water in physical property |
| Advantage | Interchangeable parts,high effective,high performance,voice-saving, easily installed and maintained |
| Applications |
Water supply and drainage,HVAC and Cooling Tower,Marine-Ballasting&Bilge,booster and pressurization set,irrigation and agriculture,fire-fighting system,plants,mines,food and chemical industry(with stainless steel),etc. |
